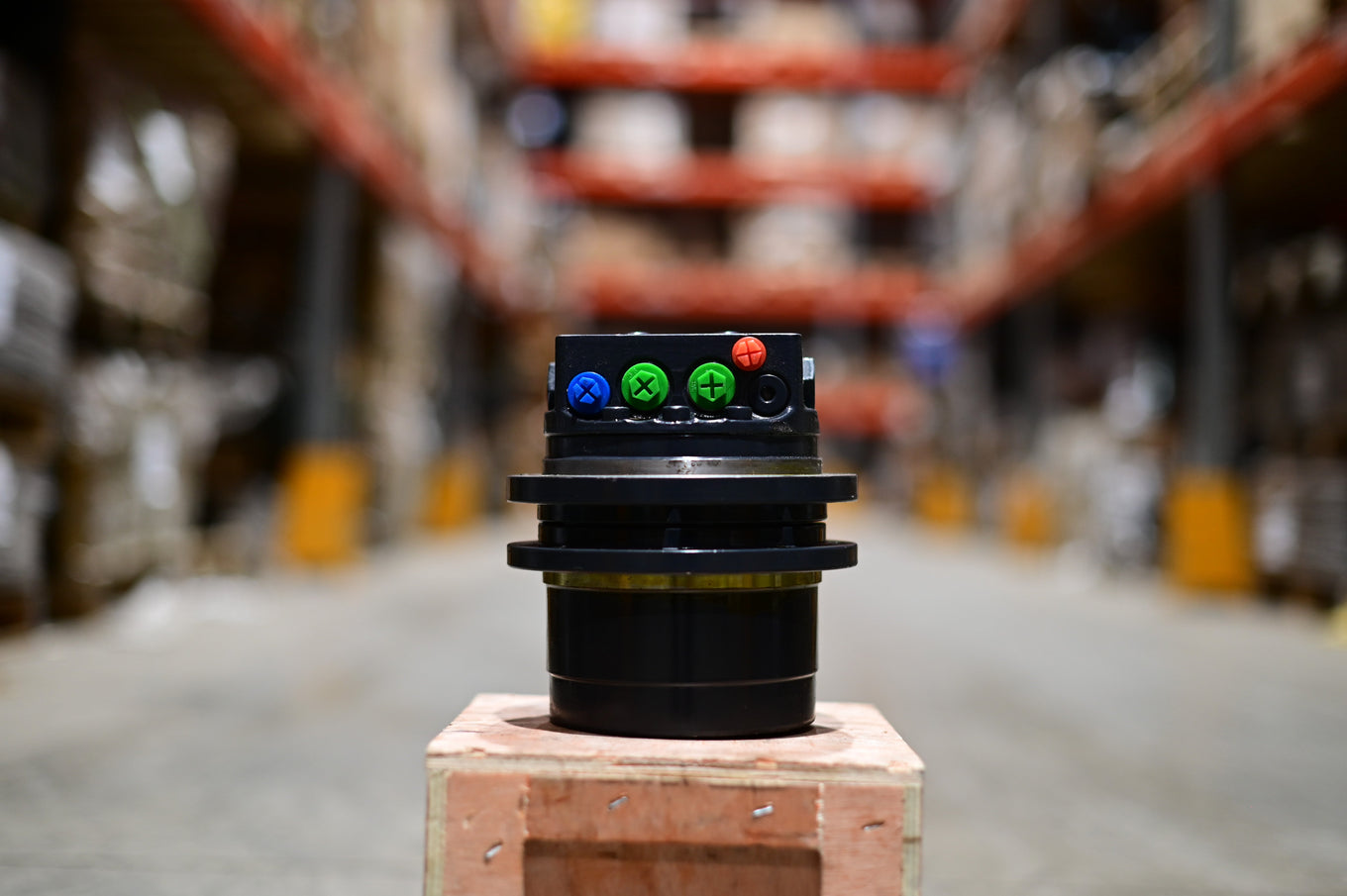

Understanding Final Drives: A Comprehensive Guide

Final drives rarely get the spotlight, yet they quietly decide whether a machine feels sharp and responsive or sluggish and strained. When they are healthy, travel is predictable, hill starts feel controlled, and the operator can place a tracked machine with confidence. When they are not, the same machine can burn fuel, chew through tracks, and lose productivity in ways that are easy to misread as “just wear and tear”.

A final drive is also a useful lens for good engineering practice. It brings together gearing, lubrication, sealing, bearings, braking (in some designs), and the realities of mud, shock loads, heat, and long duty cycles. Treat it as a system, and it repays you with reliability.

What a final drive actually does

A final drive is the last stage of the drivetrain before motion reaches the ground. In tracked equipment it typically sits at each side of the undercarriage, multiplying torque and reducing speed so the track can pull, climb, and pivot. In wheeled machines, “final drive” can refer to the last reduction at the wheels or axles, though the term is most commonly used day to day for crawler excavators, dozers, and compact track loaders.

At a practical level, the final drive has three jobs:

• Translate input rotation into track or wheel motion
• Multiply torque to match the load at the ground
• Survive contamination, shock, and continuous heat cycles

Those jobs sound simple, yet each one drives key design choices: gear type, bearing capacity, seal layout, housing stiffness, lubricant selection, and service access.

Core components and how they work together

Most tracked final drives combine a hydraulic motor with a gear reduction set in a single assembly. The motor provides rotation; the gears provide torque multiplication; bearings support the output shaft and carry radial and axial loads; seals keep oil in and grit out.

A clear mental model helps when diagnosing issues. The motor tends to show up in symptoms about power and speed consistency. The gear train and bearings tend to show up in symptoms about noise, backlash, and heat. Seals tend to show up in visible leaks or contamination.

After years of practical use, a few components earn extra respect: the floating seal pair (often called a duo cone seal), the primary bearings supporting the sprocket shaft, and the planet carrier or ring gear in planetary reductions. These parts sit at the intersection of high load and hostile environment.

Common layouts: planetary vs spur reductions

Many modern crawler final drives use planetary reduction. Some older or lighter-duty designs may use spur or helical gear reductions. Both can be well engineered; the better choice depends on packaging, load, serviceability, and cost targets.

Planetary sets shine where high reduction ratios are needed in a compact space, with load shared across multiple planet gears. Spur and helical reductions can be simpler, with fewer parts, and may be easier to inspect conceptually, though packaging can become larger for the same ratio.

A quick comparison can make the trade-offs easier to remember:

Neither layout is immune to poor lubrication, contamination, or misalignment. Good outcomes come from correct oil, correct fill level, correct breather function, and seals that stay clean.

Why final drives fail: the real causes

Final drives rarely fail because “they are weak”. They fail because conditions drift out of the design window and stay there. Heat, dirty oil, low oil, water ingress, and shock loads do not always produce instant damage. They often create a slow decline that becomes expensive only when ignored.

A useful way to group causes is by what they do to the oil film and the bearing surfaces:

• Contamination: Dirt and wear particles turn oil into grinding paste
• Water ingress: Rust, additive depletion, and poor film strength follow
• Low oil level: Starvation, heat rise, and accelerated gear and bearing damage
• Overload and shock: Brinelling, spalling, cracked carriers, chipped teeth
• Incorrect oil type: Wrong viscosity or additives can reduce protection under load

A final drive can tolerate short periods of harsh use when everything else is healthy. It struggles when several small issues stack up: a damaged breather pulls in water during cooling, a seal lip runs dry due to low oil, then abrasive mud sits around the seal face.

Early warning signs operators and fitters can trust

Many symptoms get blamed on tracks, idlers, or rollers when the final drive is the real source. The best clues are the ones that repeat under similar conditions and show a left-right difference.

Heat is one of the most honest indicators. A single final drive running noticeably hotter than the other on the same machine is telling you something, even if travel still “feels fine”. Noise matters too, though you need to distinguish between track noise and gear noise.

After a short paragraph of context, it helps to list the most actionable signs:

• Excessive housing temperature compared with the opposite side
• Oil leaking at the sprocket hub or around the motor interface
• Metallic particles on the drain plug magnet
• Growling or cyclic clicking that changes with travel speed
• Track tension changing unusually quickly on one side

When you see these signs, the goal is not panic. The goal is to shorten the time between first symptom and first inspection, because the cheapest repair is often the one done before hard parts are damaged.

Inspection and maintenance that fits real working life

Maintenance advice that requires perfect conditions tends to be ignored. The best routines are simple, repeatable, and built around the moments when the machine is already stopped.

Start with oil checks and leak awareness. Many final drives fail after a slow leak drops the level below what the bearings need, even though the machine still travels. Oil change intervals vary by manufacturer and duty cycle; what matters is consistency and cleanliness in the process. Clean around plugs, use the correct oil, and do not reuse contaminated containers.

A practical routine often includes:

• Daily walkaround: Look for fresh oil at the sprocket and on the track frame
• Regular temperature comparison: A quick scan after travel, left vs right
• Scheduled oil sampling: Trend wear metals and contamination rather than guessing
• Breather checks: Ensure the breather is present, clear, and correctly routed
• Seal area hygiene: Remove packed mud that holds moisture against seal faces

One sentence that saves money: treat breathers as active components, not passive fittings.

Lubrication choices: viscosity, additives, and common pitfalls

Final drive lubrication is not only about “gear oil”. The correct specification can include viscosity grade, extreme pressure additives, and compatibility with seal materials. A heavy oil can protect under load but run hotter in cold starts; a lighter oil can flow well in winter but offer less film strength under sustained torque if it is outside the approved spec.

Pitfalls are surprisingly ordinary. Mixing oils “because it is only a top-up” can alter additive balance. Overfilling can aerate oil and raise temperature. Underfilling is worse, yet it can be hard to spot if the machine is parked on uneven ground during checks. If you want the check to mean something, make level ground part of the routine, even if that means a short reposition before shutdown.

Rebuild, repair, or replace: making the decision with confidence

When a final drive shows signs of trouble, the decision is not always a full replacement. Many assemblies can be rebuilt with new bearings, seals, and gears where required. The right call depends on downtime tolerance, parts availability, housing condition, and whether contamination has circulated through the system.

A sensible decision process weighs risk as well as cost. A rebuild can be excellent value when the housing and major hard parts are sound. Replacement can be the better choice when there is major scoring, cracked gear teeth, or repeated contamination that suggests underlying issues.

It helps to ask focused questions before committing money:

• Root cause clarity: What failed first, and why did it fail first?
• Hard part condition: Are ring gears, carriers, and housings within service limits?
• Contamination control: Has the hydraulic circuit, motor, and lines been protected from debris?
• Downtime plan: Can you stage parts and labour to avoid a half-finished strip-down?

Confidence comes from evidence. Drain the oil into a clean container, check magnets, inspect for water, and record what you find. A small notebook of temperatures, oil condition, and left-right comparisons can turn “a feeling” into a decision.

The human factor: operation habits that extend life

Final drives live at the intersection of machine and ground. Operator technique matters, not in a moralising way, but in the physics of shock and heat. High-traction pivot turns on abrasive ground, repeated counter-rotation under heavy load, and driving with one track tight and the other loose all add stress. So does travelling long distances at high speed when the undercarriage is packed with mud that holds heat.

Small habit changes can have outsized effects: clearing packed material at breaks, easing into turns when carrying heavy loads, and paying attention to unusual noise before it becomes “normal”. The benefit is not only fewer failures, but a machine that feels smoother and more predictable at the controls.

Final drives are tough, but they respond best to calm, consistent care. When you build a routine around cleanliness, oil health, and early signals, the drivetrain stops being a mystery and becomes one of the most dependable parts of the machine.
