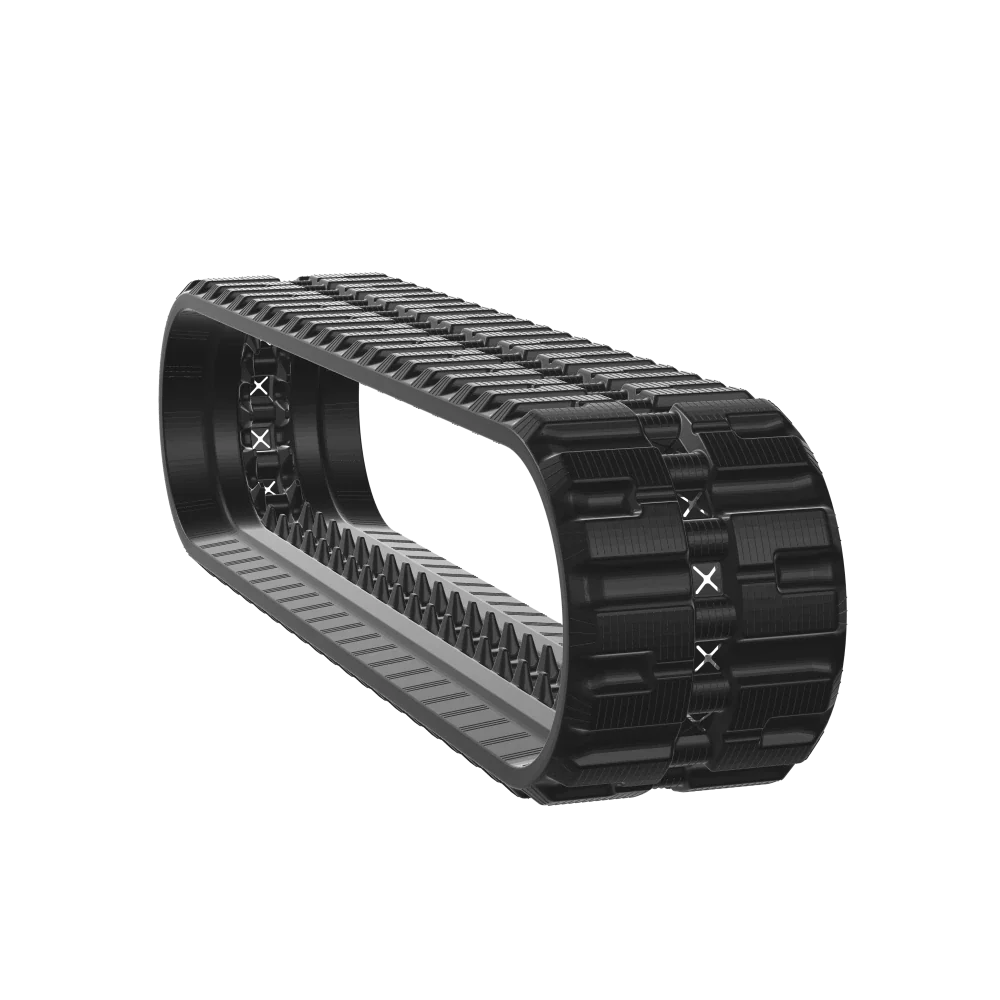

The Bobcat T595 is listed with a 49-link, 86 mm pitch rubber track in two widths: 400 mm (15.7 in) with a C-lug or Z-lug tread, and 320 mm (12.6 in) with a Z-lug tread. This guide covers how to confirm the fit, the signs of wear and the T595 idlers, bottom rollers and sprockets to check.
Ordering new tracks for a Bobcat T595 compact track loader starts with the track size. This guide gives the Bobcat T595 track size in each width and tread we list, shows how to confirm the fit, explains the signs of worn tracks and covers the T595 idlers, bottom rollers and sprockets to check while the tracks are off.
The short answer
The track listed for the Bobcat T595 with the solid-mount undercarriage has an 86 mm pitch and 49 links. It comes in two widths. Here are the sizes and treads from our catalog:
| Track size | Width | Pitch | Links | Tread |
|---|---|---|---|---|
| 400 x 86 x 49B | 400 mm (15.7 in) | 86 mm | 49 | C-lug or Z-lug |
| 320 x 86 x 49B | 320 mm (12.6 in) | 86 mm | 49 | Z-lug |
Source: Excavator Parts Direct catalog, October 2026. Both sizes are for the solid-mount undercarriage and are sold as a single track (price is per track).
Pitch and link count are the same on both sizes. Only the width changes. The width you need is the width on your machine now. If you want a C-lug tread, it is listed in the 400 mm width. If you are thinking about changing width, talk to us before you order.
If the size is still readable on your old track, use it. If it has worn off, three measurements give you the size:
Width
Measure straight across the track from one edge to the other. On a T595 track this should read 400 mm (15.7 in) or 320 mm (12.6 in).
Pitch
Pitch is the distance from the center of one link to the center of the next. On the T595 track this should read 86 mm.
Links
The link count is the number of drive lugs around the inside of the track. The T595 track has 49.
Put the three numbers together, width x pitch x links, and you have the size. Our guide to measuring rubber tracks shows each step with diagrams.
Match the size
Compare the size on your old track, or your own measurements, with the table above. Pitch should be 86 mm and the link count 49. If either is different, stop and check before you order.
Confirm the width
Choose the same width as the track on the machine now: 400 mm or 320 mm.
Confirm the undercarriage
Our T595 track and idler are listed for the solid-mount undercarriage. If you are not sure which undercarriage your machine has, contact us with the machine details and serial number and we will check.
Choose the tread
The 400 mm track is listed with a C-lug or Z-lug tread, and the 320 mm track with a Z-lug tread. The right choice depends on the ground the machine works on most and how it is used. Tell us about the job and we will help you choose.
Our advice
Getting the size right first time is the quickest way back to work. If anything does not match, talk to the team before you order, so you maximize machine uptime and avoid a return.
These are the checks we recommend on any compact track loader, and they apply to the T595.
If the slack keeps coming back after you re-tension, the cause is not always the track. Check the sprockets and the track adjuster too. A track adjuster with failed piston seals cannot hold tension. Here is how to check rubber track tension. Your machine’s operator’s manual gives the correct tension figure for the T595.
Sharp, worn sprocket teeth no longer hold the track cleanly. The track can slip or jump through the sprocket, and that shock load also reaches the final drive. If you see or hear the track jumping, stop and inspect the sprockets before you carry on.
If a set of T595 tracks has worn out well ahead of the last set, look at the sprockets, idlers and rollers before you fit new tracks. Material packing between the sprocket teeth, rollers and track also speeds up wear, so keep the undercarriage clean. Our guide to spotting a worn sprocket shows what to look for, and these five tips to extend rubber track life cover the other common causes.
How the machine is driven matters as much as the parts. Avoid spinning the tracks, unnecessary reversing, high travel speed when it is not needed, and always turning in the same direction. Each one adds wear to the tracks and to the sprockets that drive them.
With the track off, every part of the undercarriage is easy to see. That makes a track change the best time to inspect it. Here is what our catalog lists for the T595 undercarriage:
| Part | Per machine | Weight each |
|---|---|---|
| Idler | 2 | 25.5 kg (56.2 lb) |
| Bottom roller | 8 | 26.9 kg (59.3 lb) |
| Drive sprocket | Not currently listed | Not listed |
Source: Excavator Parts Direct catalog, October 2026. Weights converted from the catalog’s pound figures.
Idlers guide the track around the ends of the track frame and work with the track adjuster to keep the track at the right tension. Our catalog lists 2 per T595, for the solid-mount undercarriage. Check for worn running surfaces, damaged flanges and oil leaks. If an idler is coming off, it is also the easiest time to check or replace the track adjuster.
Bottom rollers run along the underside of the track frame and carry the weight of the machine on the track. Our catalog lists 8 per T595. Look for flat spots, worn flanges, oil leaks and rollers that no longer turn. We advise changing bottom rollers as a set: a single new roller sits proud of the worn ones and wears faster.
The sprocket bolts to the final drive, and its teeth engage the track to move the machine. We do not currently list a T595 sprocket, but the sprockets still need checking at every track change. Sprocket wear is hard to judge by eye, so compare your sprocket with an unused one of the same type. Wear builds faster in reverse and at higher travel speeds. Fitting new tracks to worn sprockets risks the slipping and early wear described above.
Our advice
If the idlers, rollers or sprockets show wear, replace them with the tracks. That way it is one job and one round of downtime, and the new tracks start on a sound undercarriage.
These are the T595 parts in our catalog. The track and idler are on the Bobcat T595 parts page, and the bottom roller is listed for the T595 on its own page.
More Bobcat parts
Our catalog lists the Bobcat T595 track (solid-mount undercarriage) in two widths, both with an 86 mm pitch and 49 links: 400 x 86 x 49B and 320 x 86 x 49B. Order the width your machine runs now.
The T595 tracks in our catalog are 400 mm (15.7 in) or 320 mm (12.6 in) wide. Measure your old track, or read the size on it, to confirm which width you need.
It is the track size, written width x pitch x number of links. A 400 x 86 x 49B track is 400 mm wide, has an 86 mm pitch and has 49 links.
Yes. Our catalog lists the 400 x 86 x 49B track with a C-lug or Z-lug tread, and the 320 x 86 x 49B track with a Z-lug tread.
Yes. We sell T595 tracks individually, and the price shown is for one track.
Our catalog lists 2 idlers and 8 bottom rollers per machine for the Bobcat T595.
We do not currently list a T595 sprocket. Check the sprockets at every track change all the same, and contact us with your machine details if you need one.
Common signs are a track that will not hold tension, a track that slips or jumps on the sprocket, and tracks that wear out much faster than the last set. Check the sprockets, idlers, bottom rollers and track adjuster at the same time, because worn parts underneath shorten the life of new tracks.
