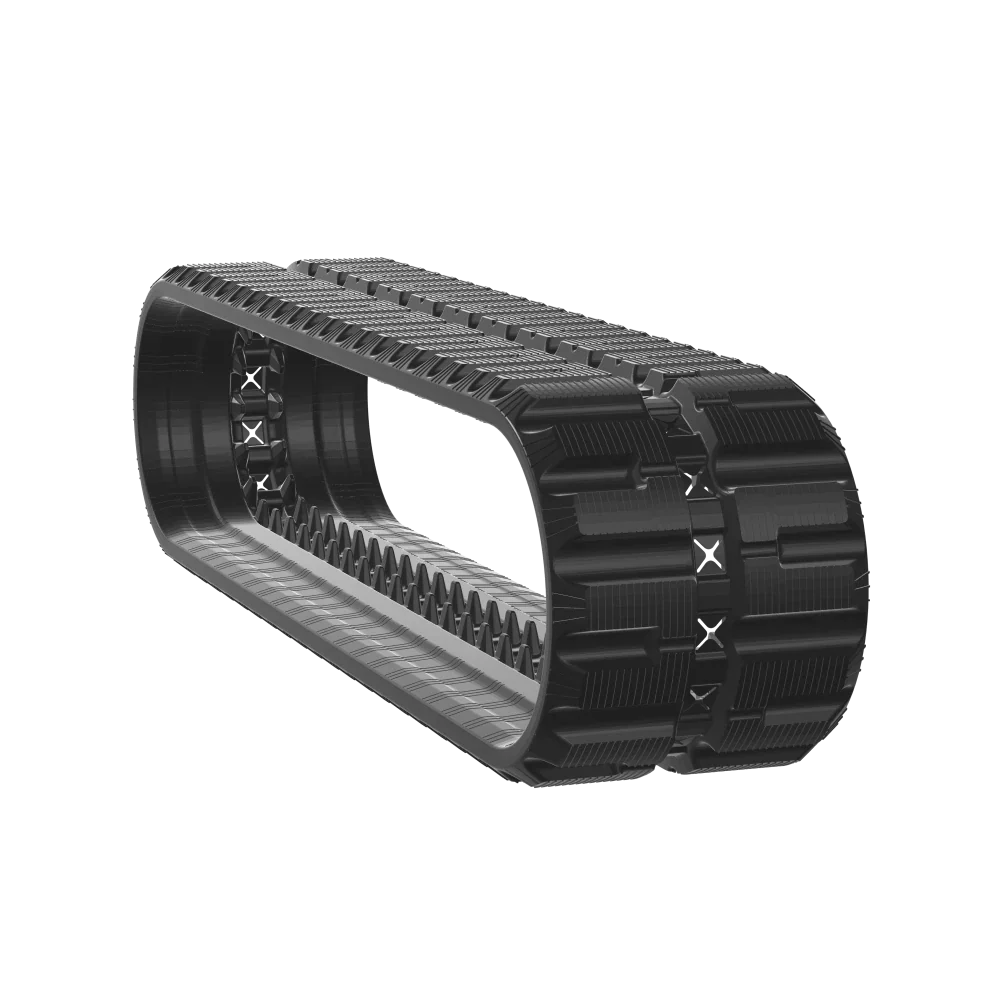

The Kubota SVL95-2s is listed with one track size, 450 x 86 x 58B (450 mm / 17.7 in wide, 86 mm pitch, 58 links), in a C-lug, D-lug or Z-lug tread. This guide covers how to confirm the fit, the signs of wear and the SVL95-2s sprockets, idlers and bottom rollers to check.
Looking for Kubota SVL95 tracks? Our catalog lists this machine as the Kubota SVL95-2s, with one track size in three tread patterns. This guide gives the Kubota SVL95-2s track size, how to confirm the fit, the signs that tracks are worn and the SVL95-2s sprockets, idlers and bottom rollers worth checking while the tracks are off.
The short answer
Our catalog lists a single track size for the Kubota SVL95-2s. The width, pitch and link count are the same for every listing. The only choice to make is the tread.
| Track size | Width | Pitch | Links | Tread |
|---|---|---|---|---|
| 450 x 86 x 58B | 450 mm (17.7 in) | 86 mm | 58 | C-lug |
| 450 x 86 x 58B | 450 mm (17.7 in) | 86 mm | 58 | D-lug |
| 450 x 86 x 58B | 450 mm (17.7 in) | 86 mm | 58 | Z-lug |
Source: Excavator Parts Direct catalog, October 2026. Sold as a single track (price is per track).
Read the size as width x pitch x links. A 450 x 86 x 58B track is 450 mm wide, has 86 mm between link centers and has 58 links. All three treads share these dimensions, so any of them matches the size on the machine. If your old track shows a different size, check with us before you order.
If the size is still readable on your old track, use it. If it has worn away, take three measurements:
Width
Measure across the track from edge to edge. An SVL95-2s track should measure 450 mm (17.7 in).
Pitch
Measure from the center of one link to the center of the next. The SVL95-2s track has an 86 mm pitch.
Links
Count the drive lugs around the inside of the track. The SVL95-2s track has 58.
If your numbers match 450, 86 and 58, you have the right size. Our guide to measuring rubber tracks shows each step with diagrams.
Confirm the model
Check the model plate on the machine. These sizes are for the machine listed in our catalog as the Kubota SVL95-2s. If the plate shows a different model, contact us with the machine details and serial number and we will check.
Match the size
Compare the size on the old track, or your measurements, with the table above. If the pitch is not 86 mm or the link count is not 58, stop and check before you order.
Choose the tread
The SVL95-2s track is listed with a C-lug, D-lug or Z-lug tread. The right one depends on the ground the machine works on most and the jobs it does. Tell us about the work and we will help you choose.
Look underneath first
Before the new tracks go on, inspect the sprockets, idlers and bottom rollers. New tracks on a worn undercarriage wear out sooner.
Our advice
A size that is checked, not guessed, is the quickest way back to work. If anything does not match, talk to the team before you order, so you maximize machine uptime and avoid a return.
These are the checks we recommend on any tracked machine, and they apply to the SVL95-2s.
If the track keeps going slack after you adjust it, do not assume the track is the cause. A track adjuster with failed piston seals cannot hold tension, and worn sprockets can add to the problem. Here is how to check rubber track tension. The correct tension figure for the SVL95-2s is in your machine’s operator’s manual.
When sprocket teeth wear sharp, they stop holding the track cleanly. The track can slip or jump through the sprocket, and the shock load travels into the final drive. If you see or hear this happen, stop and inspect the sprockets before you carry on.
If a set of tracks wears out well before the last set did, look at the parts underneath before you fit new ones. Material packing between sprocket teeth, rollers and the track also speeds up wear, so keep the undercarriage clean. Our guide to spotting a worn sprocket shows what to look for, and these five tips to extend rubber track life cover other common causes.
Spinning the tracks, unnecessary reversing, high travel speed when it is not needed and always turning in the same direction all add wear. They wear the tracks and the sprockets that drive them.
With the tracks off, the whole undercarriage is in plain view. That makes a track change the best time to inspect it. Here is what our catalog lists for the SVL95-2s:
| Part | Per machine | Weight each |
|---|---|---|
| Drive sprocket | 2 | 25.0 kg (55.1 lb) |
| Idler | Front and rear positions | Not listed |
| Bottom roller | 10 | 26.0 kg (57.3 lb) |
Source: Excavator Parts Direct catalog, October 2026. Kilogram weights converted from the catalog’s pound figures.
The sprocket bolts to the final drive and its teeth engage the track to drive the machine. Our catalog lists 2 per SVL95-2s. Sprocket wear is hard to judge by eye, so compare yours with an unused sprocket of the same type. Wear builds faster in reverse and at higher travel speeds.
Idlers guide the track around each end of the track frame and work with the track adjuster to hold tension. Our catalog lists the SVL95-2s idler in the front and the rear position, so choose the one you need when you order. With an idler off, it is also the easiest time to check or replace the track adjuster.
Bottom rollers run along the underside of the track frame and carry the machine’s weight on the track. Our catalog lists 10 per SVL95-2s. Look for flat spots, worn flanges, oil leaks and rollers that no longer turn. We advise changing bottom rollers as a set, because a single new roller sits proud of the worn ones and wears faster.
Our advice
If the sprockets, idlers or rollers show wear, replace them with the tracks. It is one job and one round of downtime, and the new tracks start on a sound undercarriage.
These are the SVL95-2s parts in our catalog. All four are on the Kubota SVL95-2s parts page.
More Kubota parts
Our catalog lists one track size for the Kubota SVL95-2s: 450 x 86 x 58B. That is 450 mm (17.7 in) wide, with an 86 mm pitch and 58 links.
The SVL95-2s track in our catalog is 450 mm (17.7 in) wide.
It is the track size, written width x pitch x number of links. The track is 450 mm wide, has an 86 mm pitch and has 58 links.
Our catalog lists the 450 x 86 x 58B track for the SVL95-2s with a C-lug, D-lug or Z-lug tread. All three share the same size.
Yes. We sell SVL95-2s tracks individually, and the price shown is for one track.
Our catalog lists the SVL95-2s idler in two positions, front and rear. Choose the position you need when you order.
Our catalog lists 10 bottom rollers and 2 drive sprockets per machine for the Kubota SVL95-2s.
Common signs are a track that will not hold tension, a track that slips or jumps on the sprocket, and tracks that wear out much faster than the last set. Check the sprockets, idlers, bottom rollers and track adjuster at the same time, because worn parts underneath shorten the life of new tracks.
